BGL0016

Please do not hesitate to contact us to obtain More Information.

Request A Quote

Brand – Balluff

Price

$219.38

Type : BGL0016
  • Lead Time : 3-5 days

4 in stock (can be backordered)

Details
BGL 30A-001-S49
Series A

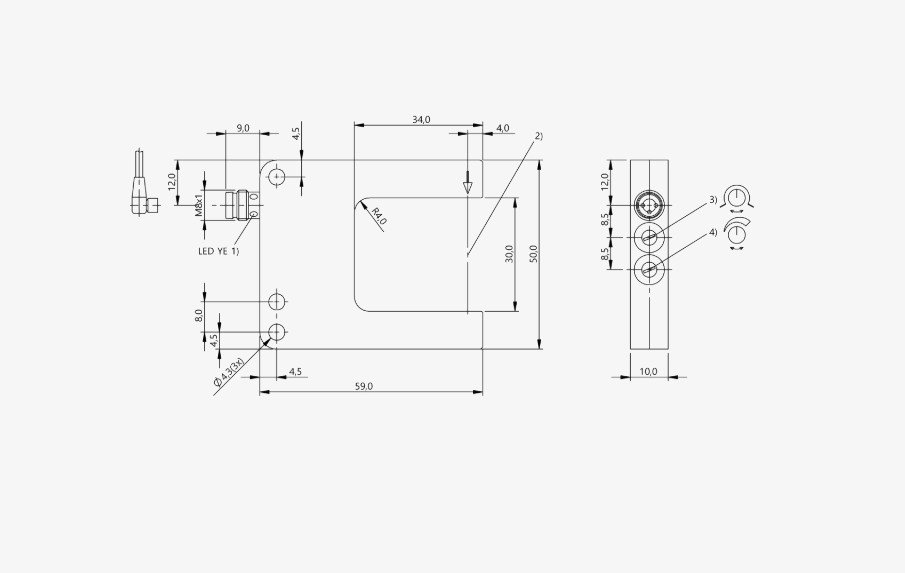

Dimension 10 x 50 x 68 mm
Fork opening 30 mm
Interface PNP NO/NC
Principle of operation Fork sensor
Principle of optical operation Through-beam sensor
Special optical feature N/A
Beam characteristic Divergent
Light type LED Red light
Light spot size Ø 1.2 mm Light exit
Range N/A
Connection Connector, M8x1-Male, 3-pin
Housing material Zinc, Die casting, Painted
Material sensing surface Glass
Operating voltage Ub 10…30 VDC
Approval/Conformity CE UKCA cULus WEEE
Trademark Global
Datasheet  Download
