MCQV-11-200-0450M – CYLINDER 200MM BORE X 450MM STROKE
Please do not hesitate to contact us to obtain More Information.
- Free Warehouse Pickup Available
- Safe Shipping & Delivery
- Secure Payment
Price
$2,258.78Each
Type : MCQV-11-200-0450M
- N/A
50 in stock (can be backordered)
Features
Non-lubrication – Special housing and bushing enables self lubrication of piston rod.
High quality-long service life – Hard anodised aluminium cylinder tubes offer a high resistance to corrosion and low internal friction.
ISO 15552 standard specification – Conforms to ISO 15552 specification enabling worldwide interchangeability.
Cylinder mountings – Available with comprehensive internationally recognised range of fixed and flexible mountings.
Specifications
| Tube I.D. (mm) | 125, 160, 200 |
| Medium | Air |
| Operating pressure range | 0.05~1 MPa |
| Proof pressure | 1.5 MPa |
| Ambient temperature | －5~＋60℃ (No freezing) |
| Available speed range | 50~500 mm/sec |
| Sensor switch | RCA |
| Sensor switch holder | HV4, PM16, HA5 |
PDFs
CAD Download
| 2D／3D downloading procedure demonstration. | Video Guide |
| 2D／3D downloading procedure demonstration. | PDF File |
| CAD Download Procedure File | Download File |
| Step File | Download |

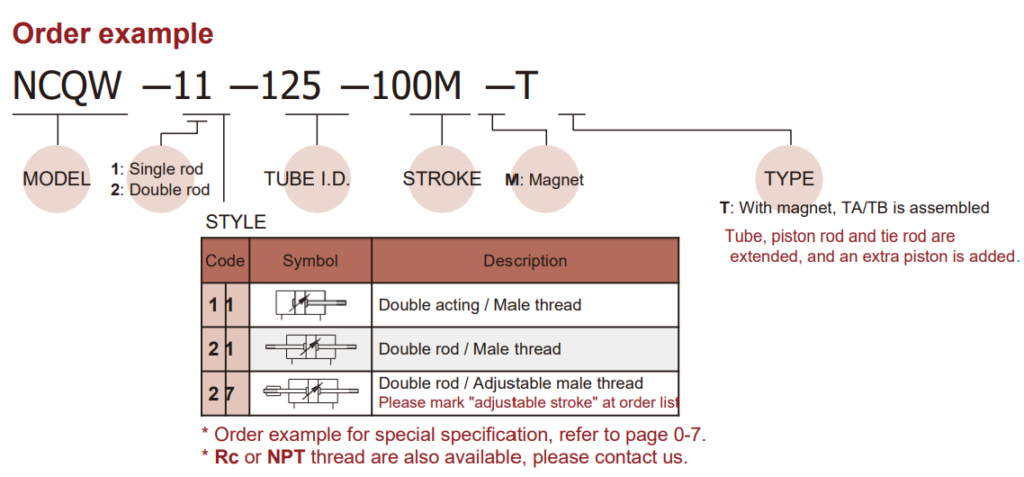

Order Example
