BOS0217

Please do not hesitate to contact us to obtain More Information.

Request A Quote

Brand – Balluff

Price

$189.06

Type : BOS0217
  • Lead Time : 3-5 days

2 in stock (can be backordered)

Details
BOS R020K-PS-RF12-00,2-S49
Series R020K

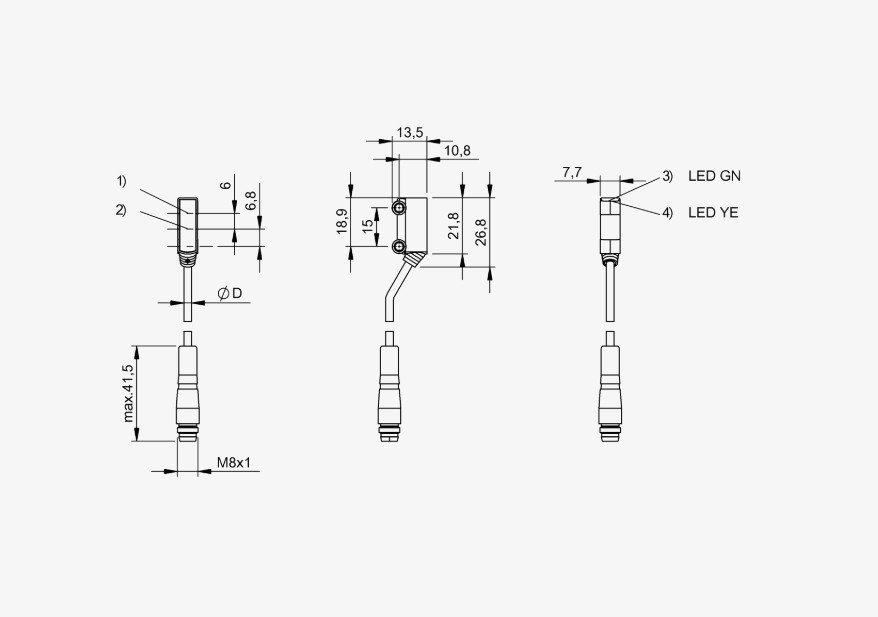

Dimension 7.7 x 26.8 x 13.5 mm
Interface PNP Normally open (NO)
Principle of operation Photoelectric sensor
Principle of optical operation Diffuse sensor, HGA fixed
Special optical feature Background suppression
Beam characteristic Focus, typical at 15 mm
Light type LED Red light
Light spot size Ø 4.5 mm at 40 mm
Range 1…60 mm
Connection Cable with connector, M8x1-Male, 3-pin, 0.20 m, PVC
Housing material ABS
Material sensing surface PMMA
Operating voltage Ub 10…30 VDC
Approval/Conformity CE cULus WEEE UKCA
Datasheet  Download
