BNI0003 (Discontinued)

Please do not hesitate to contact us to obtain More Information.

Request A Quote

Brand – Balluff

Price

$449.50

Type : BNI0003
  • Lead Time : 3-5 days

1 in stock (can be backordered)

Details
BNI DNT-302-000-Z005
Interface DeviceNet
Output current max. 2 A
Operating voltage Ub 18…30.2 VDC
Connection (COM 1) 7/8″-Male, 5-pin
Connection (COM 2) 7/8″-Female, 5-pin
Connection (supply voltage IN) 7/8″-Male, 4-pin
Connection slots 8x M12x1-Female, 5-pin, A-coded
Digital inputs 16x PNP, Type 2
Digital outputs 16x PNP
Configurable inputs/outputs yes
Extension port
Current sum US, sensor 9.0 A
Switching current
Current sum UA, actuator 9.0 A
Housing material Zinc, Die casting

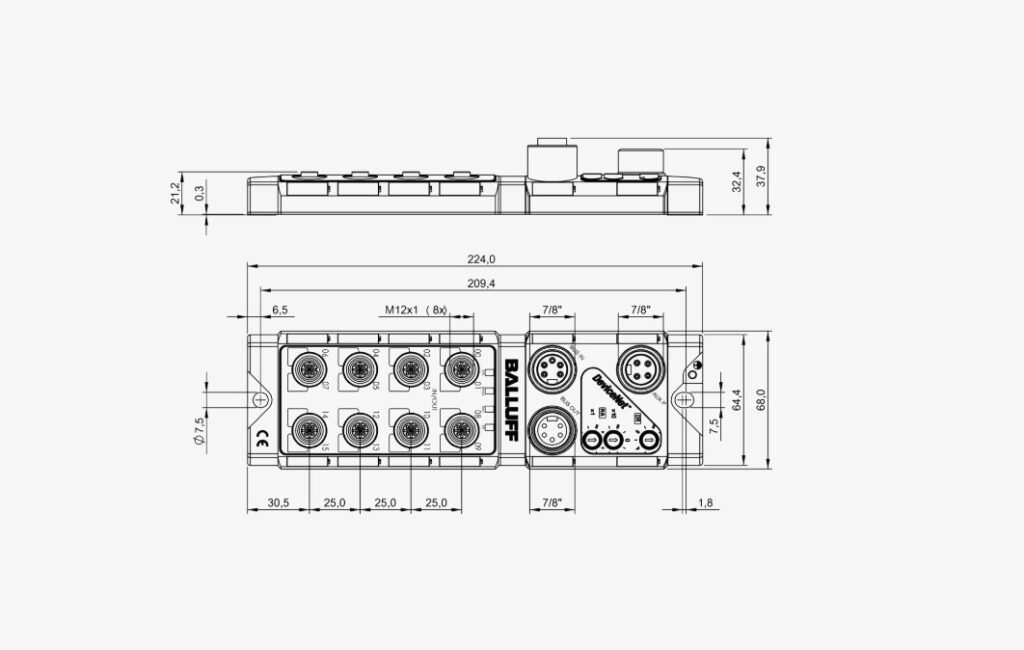

Dimension
 68 x 37.9 x 224 mm
 Ambient temperature -5…70 °C
 IP rating IP67
 Transfer rate
Process data cycle min.
Process data IN
Process data OUT
Datasheet  Download
