BHS0065

Please do not hesitate to contact us to obtain More Information.

Request A Quote

Brand – Balluff

Price

$486.46

Type : BHS0065
  • Lead Time : 3-5 days

2 in stock (can be backordered)

Details

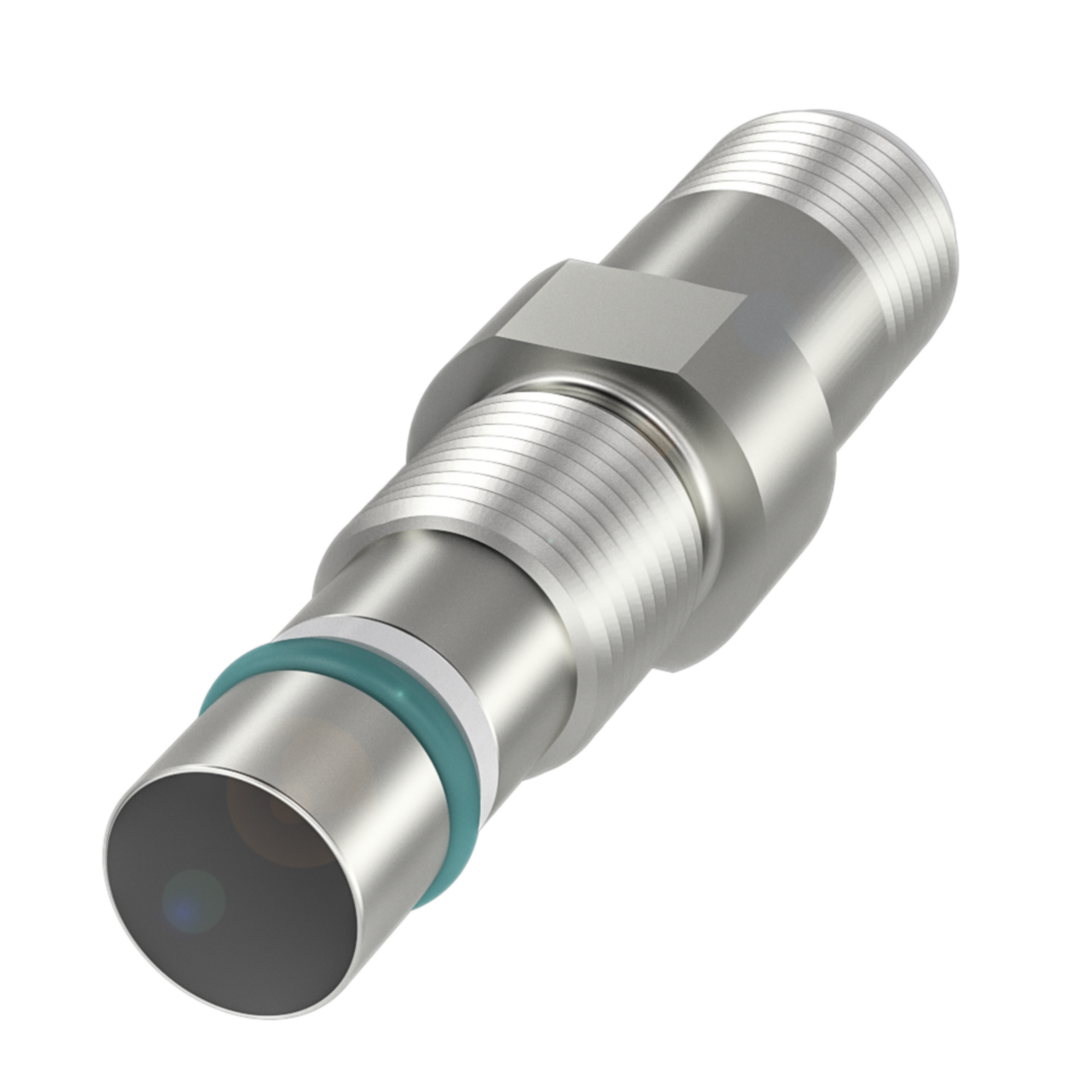

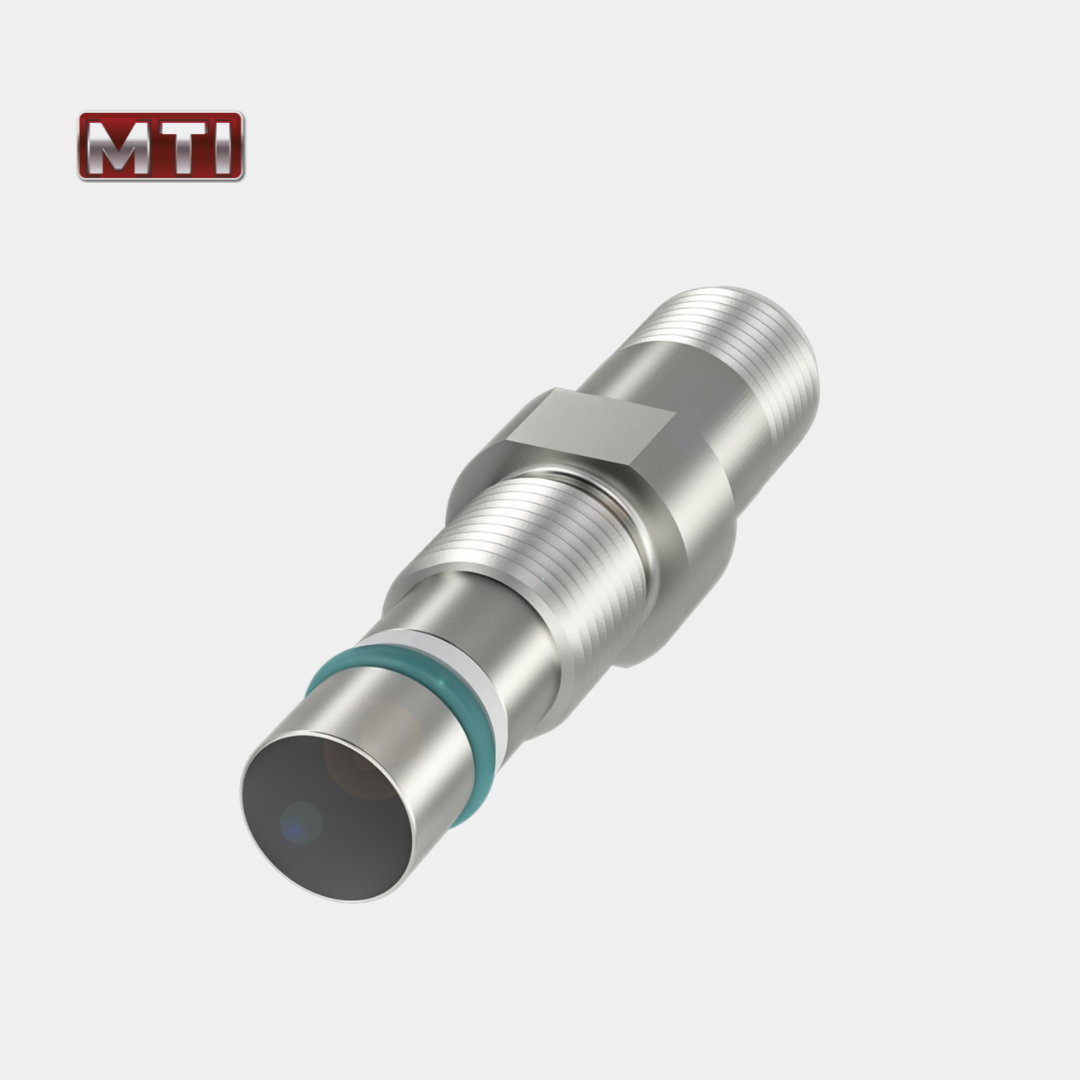

BHS B400V-PSD25-S04-003

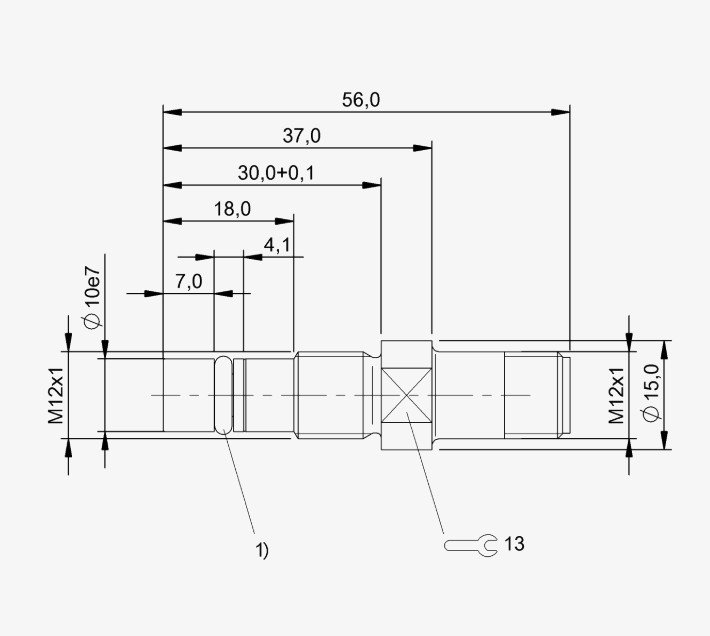

Dimension Ø 12 x 56 mm
Style Housing M12x1
Installation for flush mounting
Range 2.5 mm
Switching output PNP Normally open (NO)
Switching frequency 400 Hz
Housing material 1.4104 stainless steel
Material sensing surface Ceramic
Connection Connector, M12x1-Male, 4-pin
Operating voltage Ub 10…30 VDC
Ambient temperature -25…90 °C
Pressure rating max. 500 bar
IP rating IP68
Approval/Conformity CE UKCA cULus WEEE
Datasheet  Download
