BHS0065
Please do not hesitate to contact us to obtain More Information.
- Free Warehouse Pickup Available
- Safe Shipping & Delivery
- Secure Payment
Brand – Balluff
Price
$486.46
Type : BHS0065
- Lead Time : 3-5 days
2 in stock (can be backordered)
Details

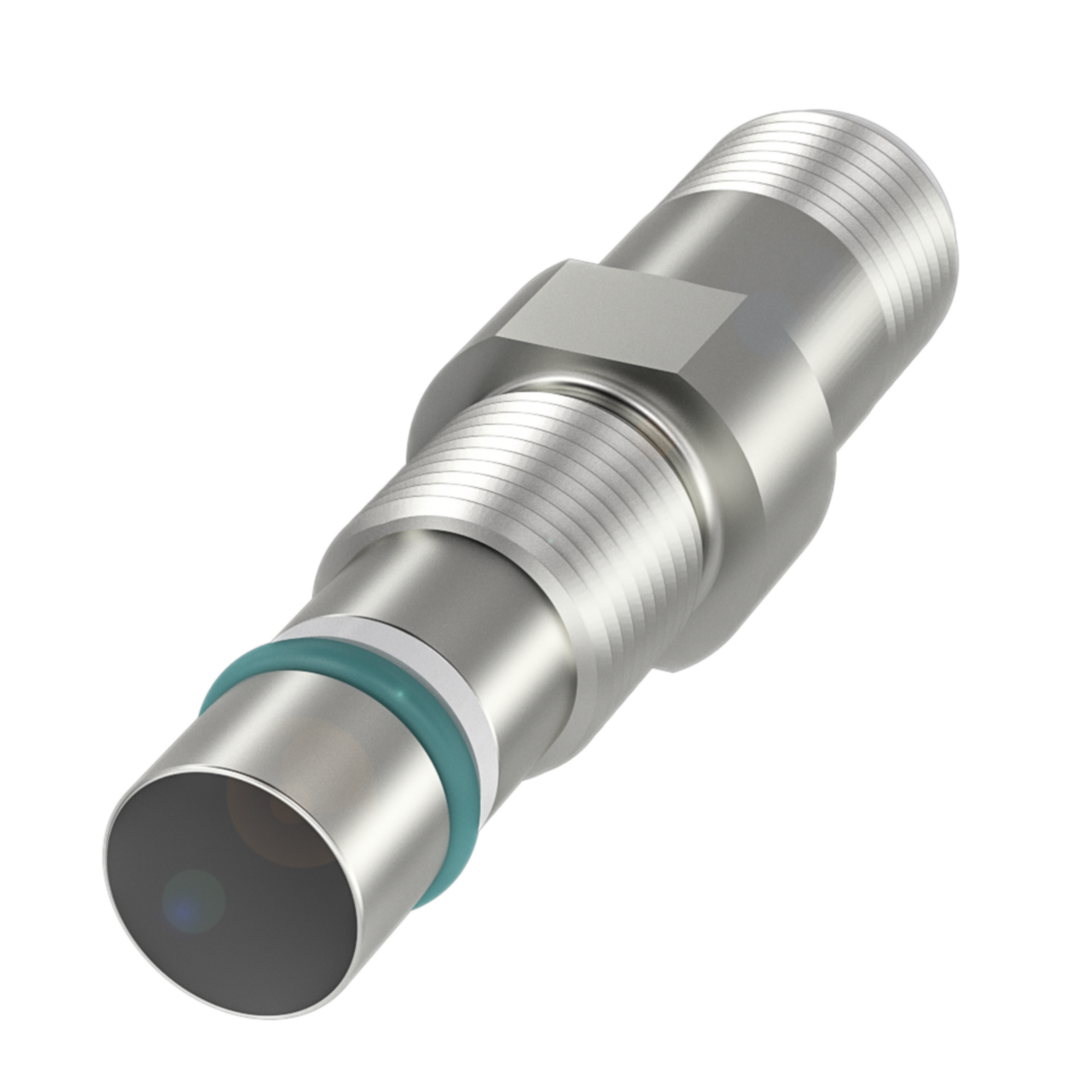

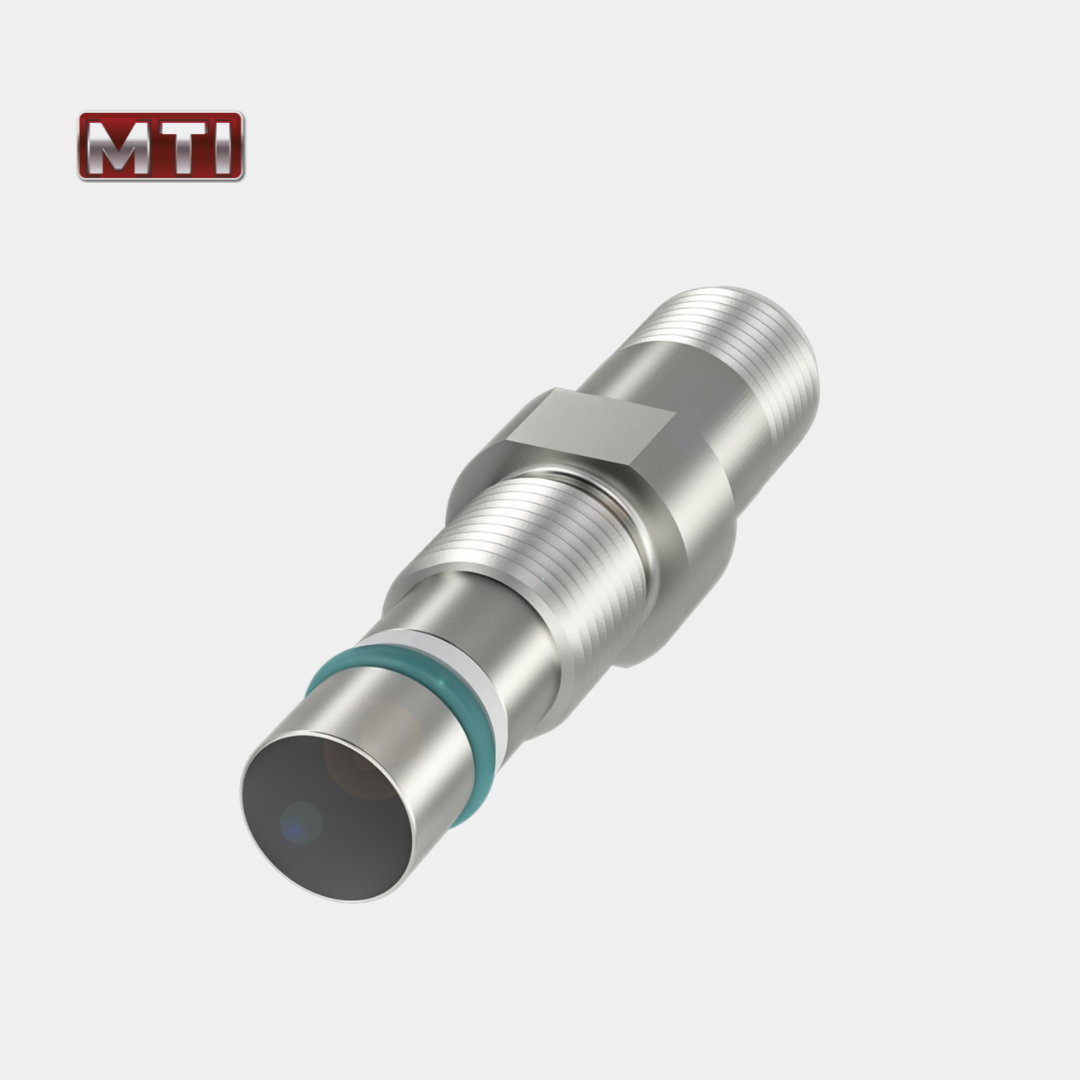

BHS B400V-PSD25-S04-003

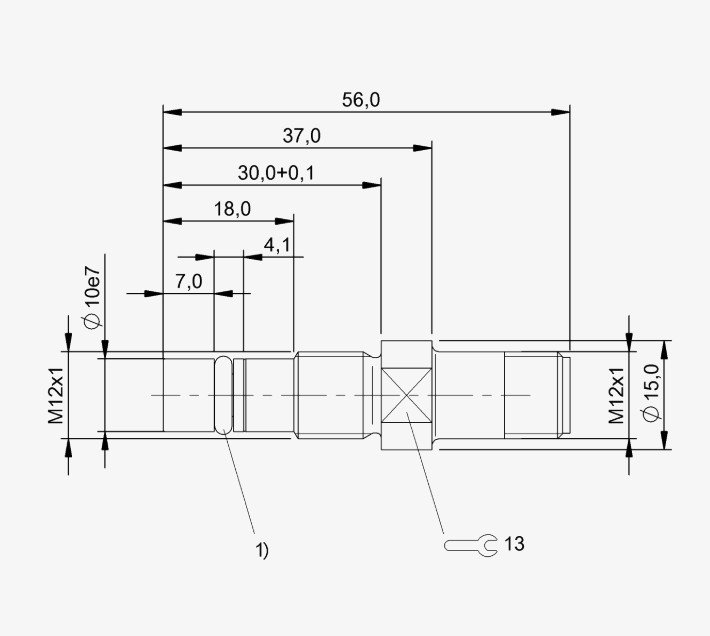

| Dimension | Ø 12 x 56 mm |
| Style Housing | M12x1 |
| Installation | for flush mounting |
| Range | 2.5 mm |
| Switching output | PNP Normally open (NO) |
| Switching frequency | 400 Hz |
| Housing material | 1.4104 stainless steel |
| Material sensing surface | Ceramic |
| Connection | Connector, M12x1-Male, 4-pin |
| Operating voltage Ub | 10…30 VDC |
| Ambient temperature | -25…90 °C |
| Pressure rating max. | 500 bar |
| IP rating | IP68 |
| Approval/Conformity | CE UKCA cULus WEEE |
Downloads
| Datasheet | Download |
Order Example
