BES01ZN (Discontinued)

Please do not hesitate to contact us to obtain More Information.

Request A Quote

Brand – Balluff

Price

$129.88

Type : BES01ZN
  • Lead Time : 3-5 days

1 in stock (can be backordered)

Details
BES M12MI-PSH80B-S04G

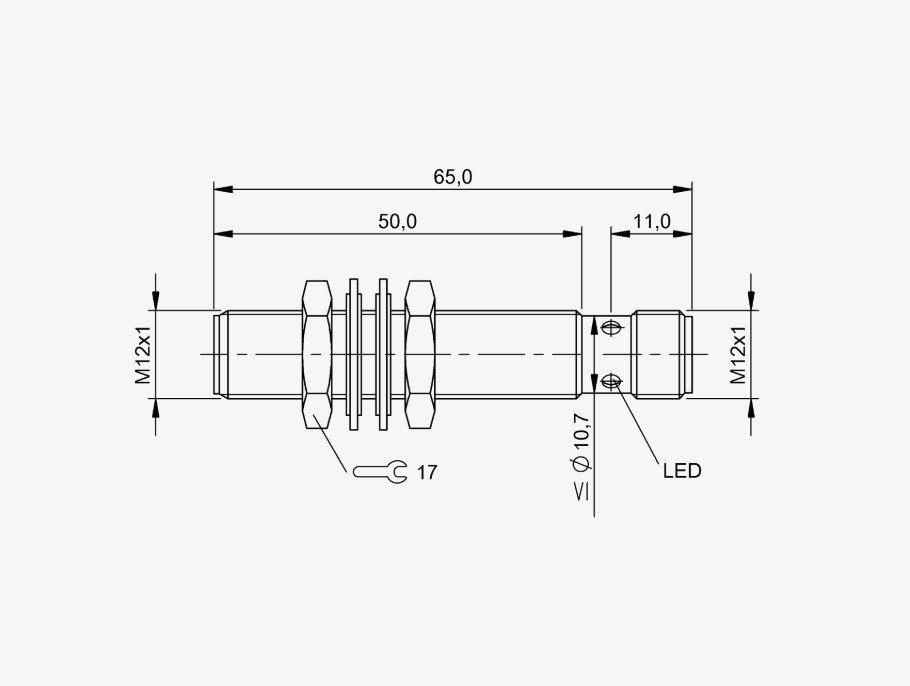

Dimension Ø 12 x 65 mm
Style Housing M12x1
Installation quasi-flush
Range 8 mm
Switching output PNP Normally open (NO)
Switching frequency 300 Hz
Housing material Brass, nickel-plated
Material sensing surface LCP
Connection Connector, M12x1-Male, 4-pin
Operating voltage Ub 10…55 VDC
Ambient temperature 0…60 °C
Pressure rating max. n/a
IP rating IP67
Approval/Conformity CE UKCA WEEE
Datasheet  Download
