BES01ZN (Discontinued)
Please do not hesitate to contact us to obtain More Information.
- Free Warehouse Pickup Available
- Safe Shipping & Delivery
- Secure Payment
Brand – Balluff
Price
$129.88
Type : BES01ZN
- Lead Time : 3-5 days
1 in stock (can be backordered)
Details
BES M12MI-PSH80B-S04G

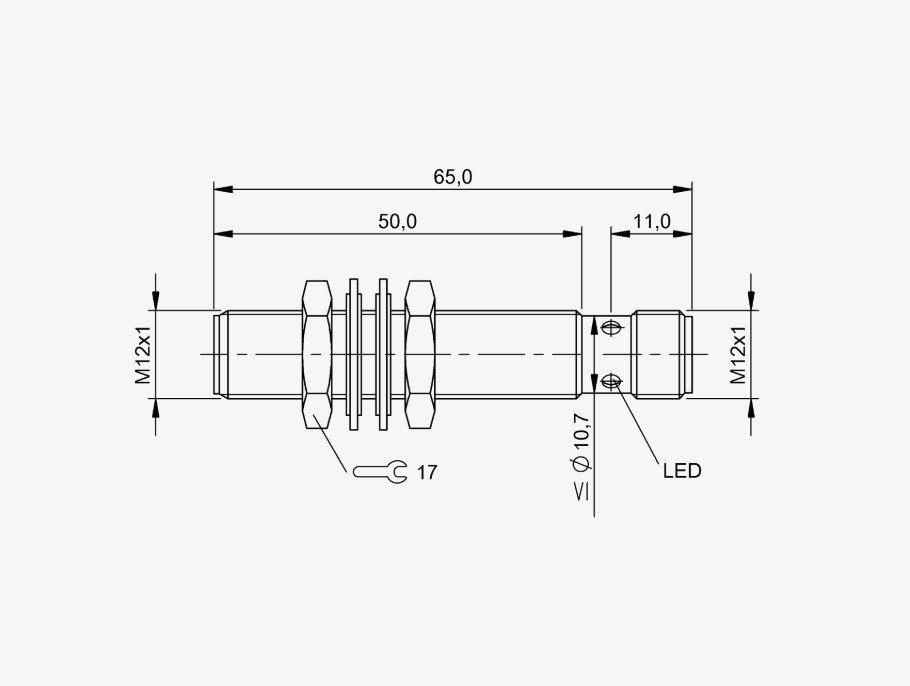

| Dimension | Ø 12 x 65 mm |
| Style Housing | M12x1 |
| Installation | quasi-flush |
| Range | 8 mm |
| Switching output | PNP Normally open (NO) |
| Switching frequency | 300 Hz |
| Housing material | Brass, nickel-plated |
| Material sensing surface | LCP |
| Connection | Connector, M12x1-Male, 4-pin |
| Operating voltage Ub | 10…55 VDC |
| Ambient temperature | 0…60 °C |
| Pressure rating max. | n/a |
| IP rating | IP67 |
| Approval/Conformity | CE UKCA WEEE |
Downloads
| Datasheet | Download |
Order Example
