BES00EF

Please do not hesitate to contact us to obtain More Information.

Request A Quote

Brand – Balluff

Price

$80.07

Type : BES00EF
  • Lead Time : 3-5 days

22 in stock (can be backordered)

Details
BES M12ME-PSC40B-S04G-003

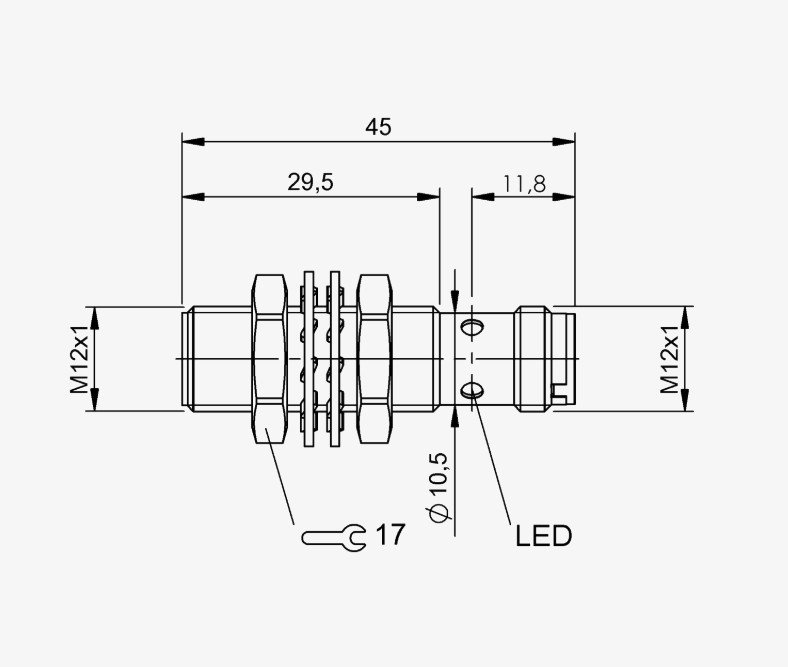

Dimension Ø 12 x 45 mm
Style Housing M12x1
Installation for flush mounting
Range 4 mm
Switching output PNP Normally open (NO)
Switching frequency 2500 Hz
Housing material Brass, Nickel-free coated
Material sensing surface PBT
Connection Connector, M12x1-Male, 4-pin
Operating voltage Ub 10…30 VDC
Ambient temperature -25…70 °C
IP rating IP68
Approval/Conformity CE UKCA cULus WEEE
Datasheet  Download
