BCC061M

Please do not hesitate to contact us to obtain More Information.

Request A Quote

Brand – Balluff

Price

$45.62

Type : BCC061M
  • Lead Time : 3-5 days

5 in stock (can be backordered)

Details

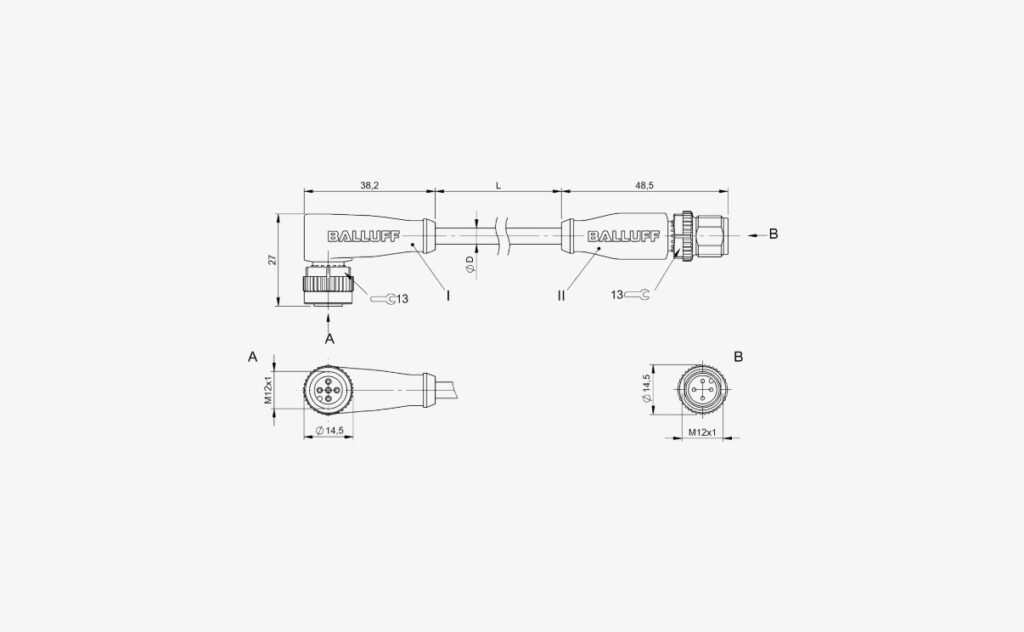

BCC M425-M414-3A-606-EX44T2-020
Connection 1 M12x1-Female, angled, 5-pin, A-coded
Connection 2 M12x1-Male, straight, 4-pin, A-coded
Switching output
Power indicator LED green/no
Function indicator yes/no
Function indicator (Pin 4) LED yellow
Cable TPE yellow, 2 m, Drag chain compatible
Number of conductors  4
Conductor cross-section
Cable temperature, fixed routing -50…105 °C
Cable temperature, flexible routing -25…105 °C
Operating voltage Ub 30 VDC
Rated current (40 °C) 4.0 A
IP rating IP67, IP68, IP69K/IP67, IP68, IP69K
Approval/Conformity CE cULus WEEE
Datasheet  Download
