BCC05MN
Please do not hesitate to contact us to obtain More Information.
- Free Warehouse Pickup Available
- Safe Shipping & Delivery
- Secure Payment
Brand – Balluff
Price
$45.62
Type : BCC05MN
- Lead Time : 3-5 days
30 in stock (can be backordered)
Details

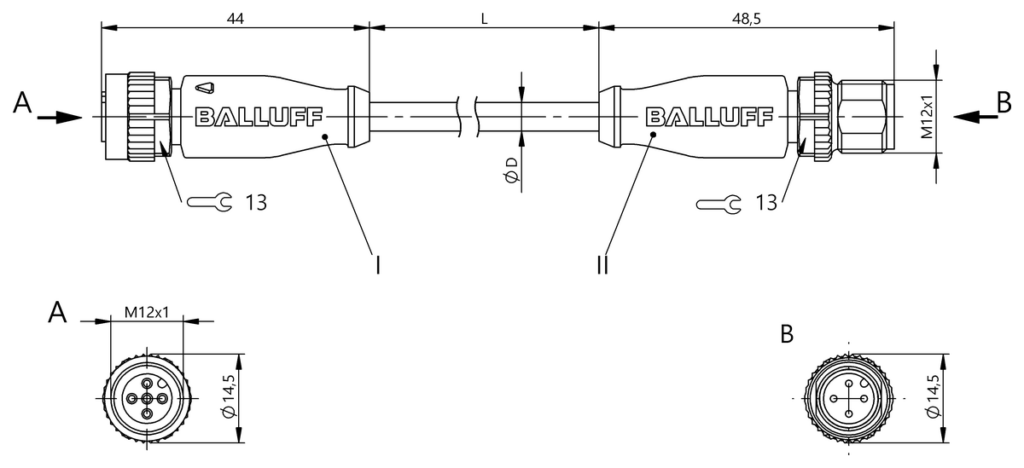

BCC M415-M414-3A-606-EX44T2-020
Key features
Connection 1 : M12x1-Female, straight, 5-pin, A-coded
Connection 2 : M12x1-Male, straight, 4-pin, A-coded
Power indicator : LED green/no
Function indicator : yes/no
Function indicator (Pin 4) : LED yellow
Cable : TPE yellow, 2 m, Drag chain compatible
Number of conductors : 4
Cable temperature, fixed routing : -50…105 °C
Cable temperature, flexible routing : -25…105 °C
Operating voltage Ub : 30 VDC
Rated current (40 °C) : 4.0 A
IP rating : IP67, IP68, IP69K/IP67, IP68, IP69K
Approval/Conformity :
CE
cULus
WEEE
