BNI007Z
Please do not hesitate to contact us to obtain More Information.
- Free Warehouse Pickup Available
- Safe Shipping & Delivery
- Secure Payment
Brand – Balluff
Price
$307.00
Type : BNI007Z
- Lead Time : 3-5 days
3 in stock (can be backordered)
Details
BCC M414-E814-BG-RM013-000
| Interface | IO-Link 1.1 |
| Operating voltage Ub | 18…30.2 VDC |
| Connection (COM 1) | M12x1-Male, 4-pin, A-coded |
| Connection slots | 8x M12x1-Female, 5-pin, A-coded |
| Digital inputs | 16x PNP, Type 3 |
| Digital outputs | 16x PNP |
| Configurable inputs/outputs | YES |
| Extension port | YES |
| Current sum US, sensor | 4 A |
| Switching current | 16x 350 mA |
| Current sum UA, actuator | 4 A |
| Housing material | PA, Transparent |
|

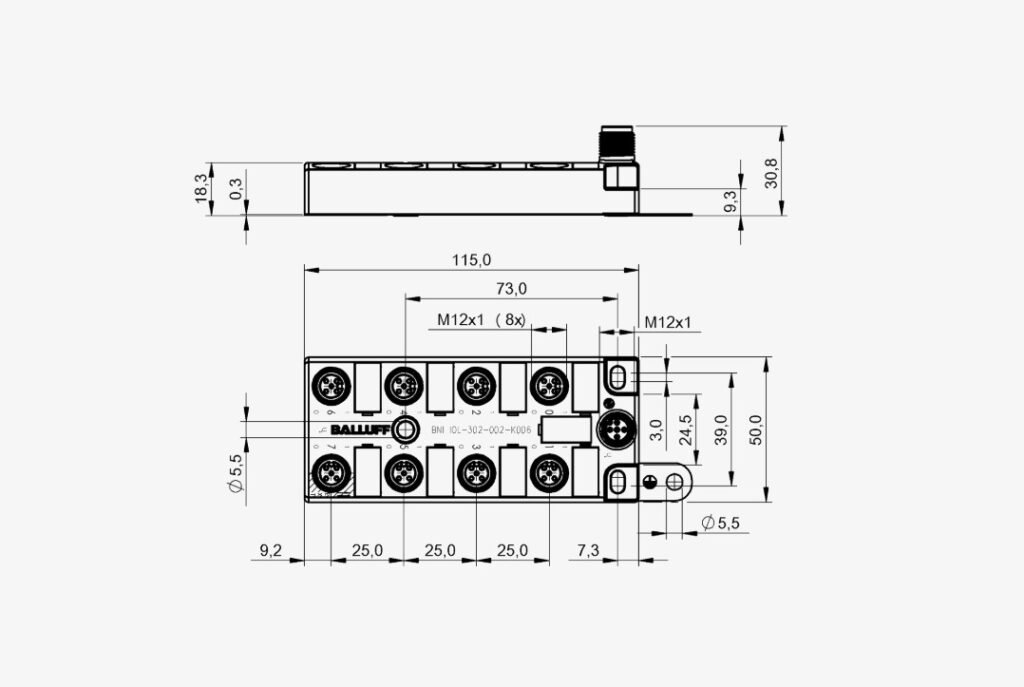

Dimension |
50 x 30.8 x 115 mm |
| Ambient temperature | -20…70 °C |
| IP rating | IP67, when threaded in |
| Transfer rate | COM2 (38.4 kBaud) |
| Process data cycle min. | 3.5 ms |
| Process data IN | 2 bytes |
| Process data OUT | 2 bytes |
Downloads
| Datasheet | Download |
Order Example
