BNI0077
Please do not hesitate to contact us to obtain More Information.
- Free Warehouse Pickup Available
- Safe Shipping & Delivery
- Secure Payment
Brand – Balluff
Price
$1,200.51
Type : BNI0077
- Lead Time : 3-5 days
2 in stock (can be backordered)
Details
BNI ECT-508-105-Z015
| Interface | EtherCAT |
| Auxiliary interfaces | 8x IO-Link |
| Port-class | Type A |
| Output current max. | 2 A |
| Operating voltage Ub | 18…30.2 VDC |
| Connection (COM 1) | M12x1-Female, 4-pin, D-coded |
| Connection (COM 2) | M12x1-Female, 4-pin, D-coded |
| Connection (supply voltage IN) | 7/8″-Male, 5-pin |
| Connection (supply voltage OUT) | 7/8″-Female, 5-pin |
| Connection slots | 8x M12x1-Female, 5-pin, A-coded |
| Digital inputs | 16x PNP, Type 3 |
| Digital outputs | 16x PNP |
| Configurable inputs/outputs | yes |
| Current sum US, sensor | 9.0 A |
| Current sum UA, actuator |
9.0 A
|
| Housing material | Die-cast zinc, nickel-plated |

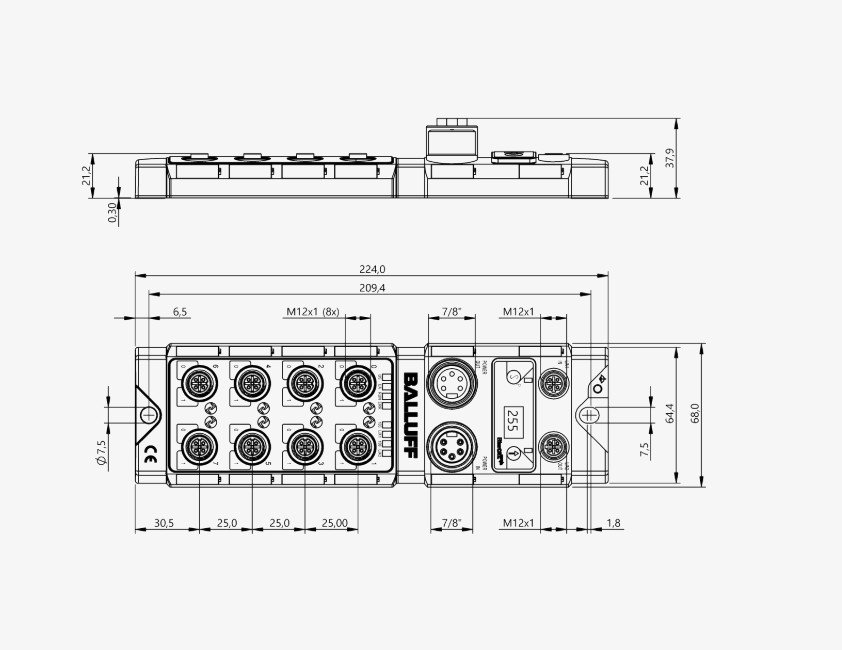

| Dimension | 68 x 37.9 x 224 mm |
| Ambient temperature | -5…70 °C |
| IP rating | IP67 |
| IO-Link version | 1.1 |
Downloads
| Datasheet | Download |
Order Example
