BMF0043
Please do not hesitate to contact us to obtain More Information.
- Free Warehouse Pickup Available
- Safe Shipping & Delivery
- Secure Payment
Brand – Balluff
Price
$111.51
Type : BMF0043
- Lead Time : 3-5 days
1 in stock (can be backordered)
Details
BMF 303K-PS-C-2A-SA2-S49-00,3
| Slot type | variable |

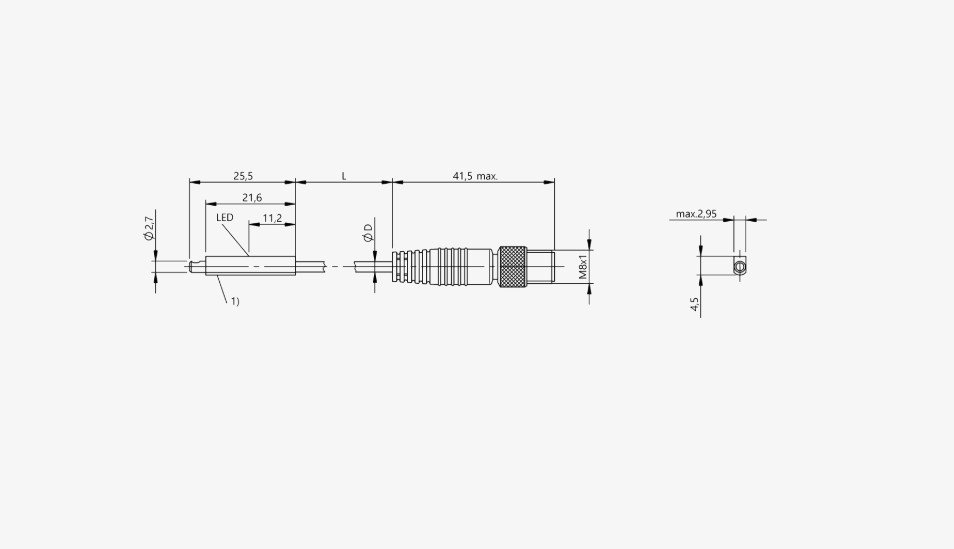

| Dimension | 25.5 x 3 x 4.5 mm |
| Principle of operation | Magnetic field sensor |
| Connection | M8x1-Male, 3-pin |
| Cable | PUR, 0.3 m |
| Application | miniaturized actuators |
| Mounting part | Mounting bracket BMF 303-HW* |
| Housing material | LCP |
| Switching output | PNP Normally open (NO) |
| Switching frequency | 30000 Hz |
| Operating voltage Ub | 10…30 VDC |
| Ambient temperature | -25…85 °C |
| IP rating | IP67 |
| Approval/Conformity | cULus CE UKCA WEEE |
Downloads
| Datasheet | Download |
Order Example
