BES01JE
Please do not hesitate to contact us to obtain More Information.
- Free Warehouse Pickup Available
- Safe Shipping & Delivery
- Secure Payment
Brand – Balluff
Price
$190.68
Type : BES01JE
- Lead Time : 3-5 days
3 in stock (can be backordered)
Details

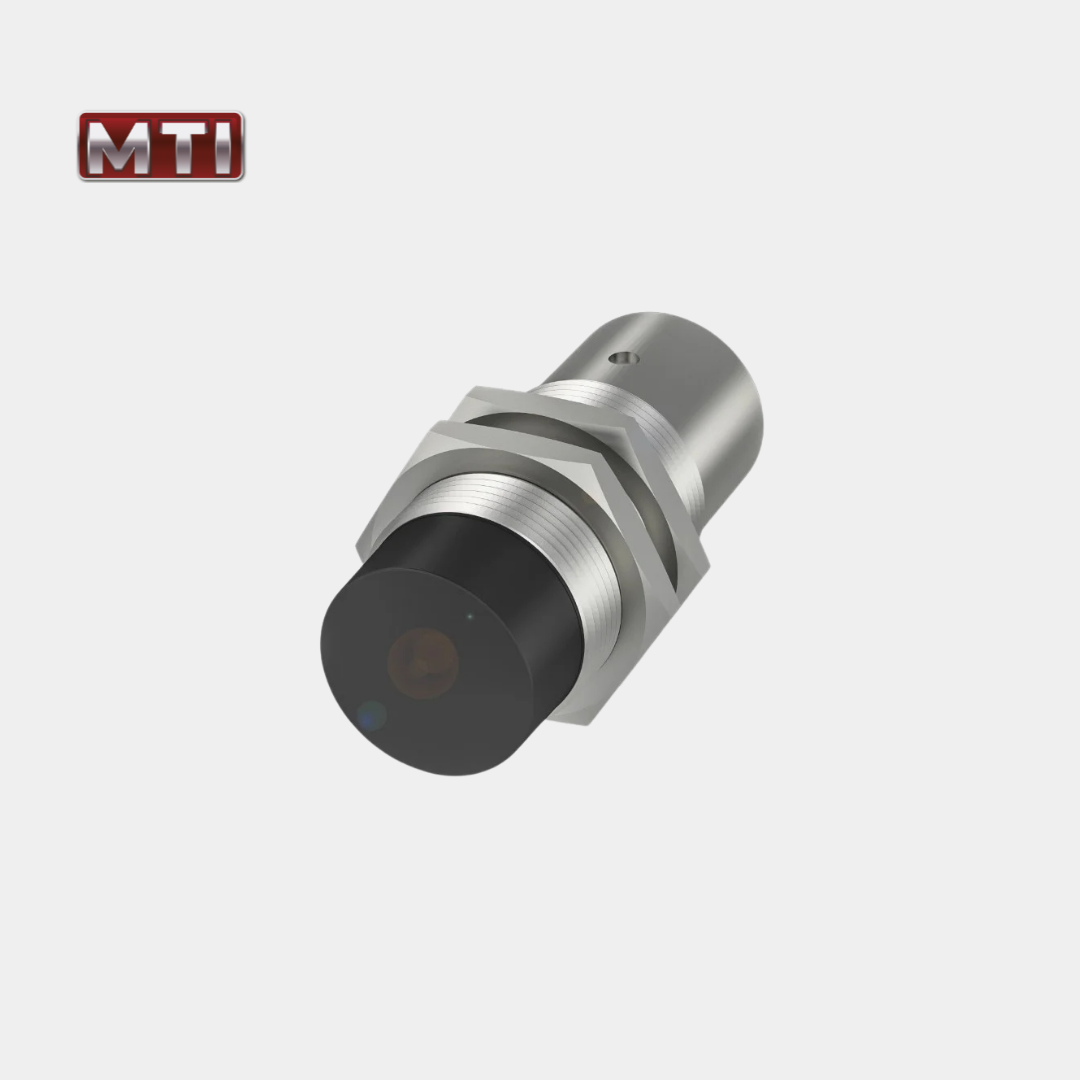

BES 516-362-S4-C

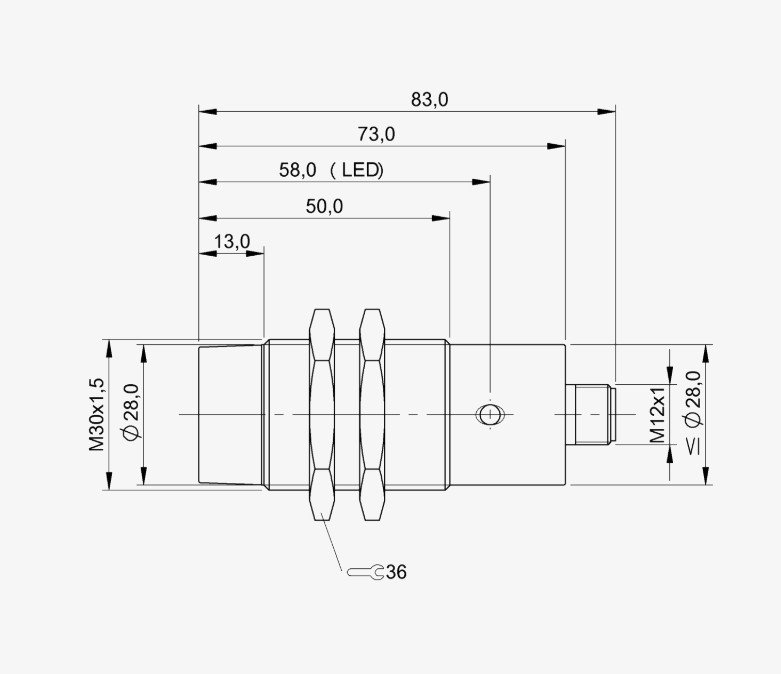

| Dimension | Ø 30 x 83 mm |
| Style Housing | M30x1.5 |
| Installation | non-flush |
| Range | 15 mm |
| Switching output | PNP Normally open (NO) |
| Switching frequency | 100 Hz |
| Housing material | Brass, nickel-plated |
| Material sensing surface | PA 12 |
| Connection | Connector, M12x1-Male, 4-pin |
| Operating voltage Ub | 10…30 VDC |
| Ambient temperature | -25…70 °C |
| IP rating | IP68 |
| Approval/Conformity | CE UKCA cULus WEEE |
Downloads
| Datasheet | Download |
Order Example
