BES00P7
Please do not hesitate to contact us to obtain More Information.
- Free Warehouse Pickup Available
- Safe Shipping & Delivery
- Secure Payment
Brand – Balluff
Price
$192.50
Type : BES00P7
- Lead Time : 3-5 days
14 in stock (can be backordered)
Details
BES 516-324-G-E5-C-S49

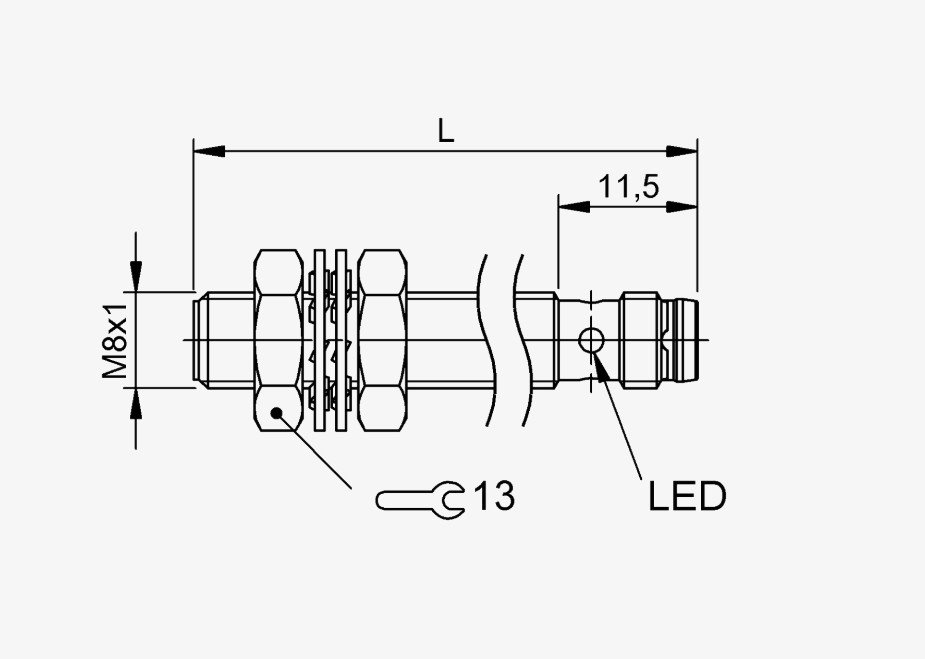

| Dimension | Ø 8 x 45 mm |
| Style Housing | M8x1 |
| Installation | for flush mounting |
| Range | 2 mm |
| Switching output | PNP Normally open (NO) |
| Switching frequency | 5000 Hz |
| Housing material | Stainless steel |
| Material sensing surface | PBT |
| Connection | Connector, M8x1-Male, 3-pin |
| Operating voltage Ub | 10…30 VDC |
| Ambient temperature | -40…85 °C |
| IP rating | IP68 |
| Approval/Conformity | CE UKCA cULus WEEE |
Downloads
| Datasheet | Download |
Order Example
