BES00CK
Please do not hesitate to contact us to obtain More Information.
- Free Warehouse Pickup Available
- Safe Shipping & Delivery
- Secure Payment
Brand – Balluff
Price
$90.64
Type : BES00CK
- Lead Time : 3-5 days
11 in stock (can be backordered)
Details
BES M08EE-PSC20B-S49G-003

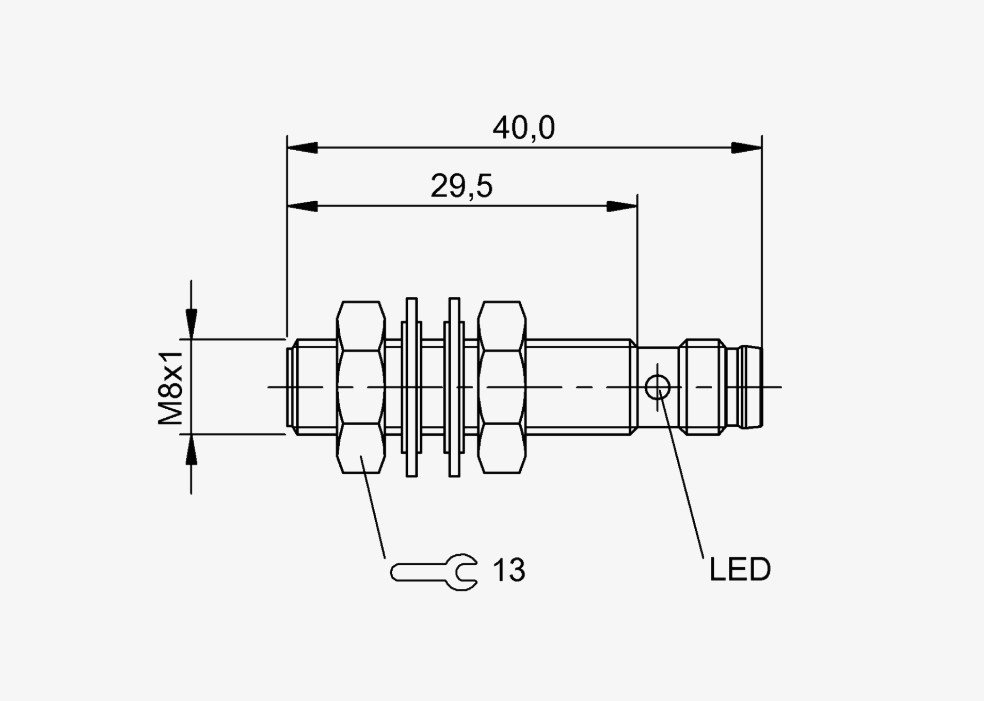

| Dimension | Ø 8 x 40 mm |
| Style Housing | M8x1 |
| Installation | for flush mounting |
| Range | 2 mm |
| Switching output | PNP Normally open (NO) |
| Switching frequency | 5000 Hz |
| Housing material | Stainless steel |
| Material sensing surface | PBT |
| Connection | Connector, M8x1-Male, 3-pin |
| Operating voltage Ub | 10…30 VDC |
| Ambient temperature | -40…85 °C |
| Pressure rating max. | N/A |
| IP rating | IP68 |
| Approval/Conformity | cULus CE UKCA WEEE |
Downloads
| Datasheet | Download |
Order Example
