BES0068
Please do not hesitate to contact us to obtain More Information.
- Free Warehouse Pickup Available
- Safe Shipping & Delivery
- Secure Payment
Brand – Balluff
Price
$74.44
Type : BCC0E87-1
- Lead Time : 3-5 days
1 in stock (can be backordered)
Details
BES M12MI-PSC40B-S04G

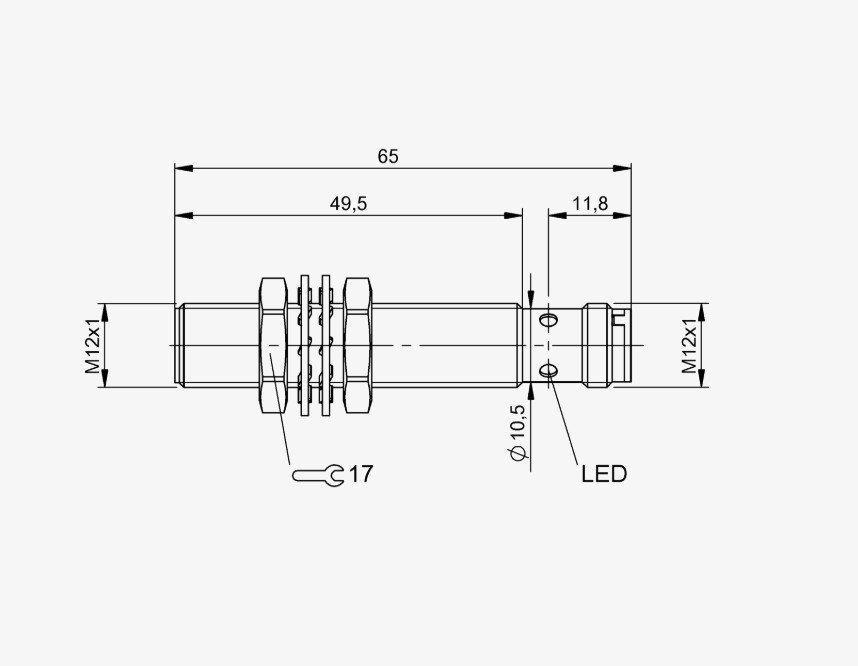

| Dimension | Ø 12 x 65 mm |
| Style Housing | M12x1 |
| Installation | for flush mounting |
| Range | 4 mm |
| Switching output | PNP Normally open (NO) |
| Switching frequency | 2500 Hz |
| Housing material | Brass, Nickel-free coated |
| Material sensing surface | PBT |
| Connection | Connector, M12x1-Male, 3-pin |
| Operating voltage Ub | 10…30 VDC |
| Ambient temperature | -25…70 °C |
| IP rating | IP68 |
| Approval/Conformity | CE UKCA cULus WEEE |
Downloads
| Datasheet | Download |
Order Example
