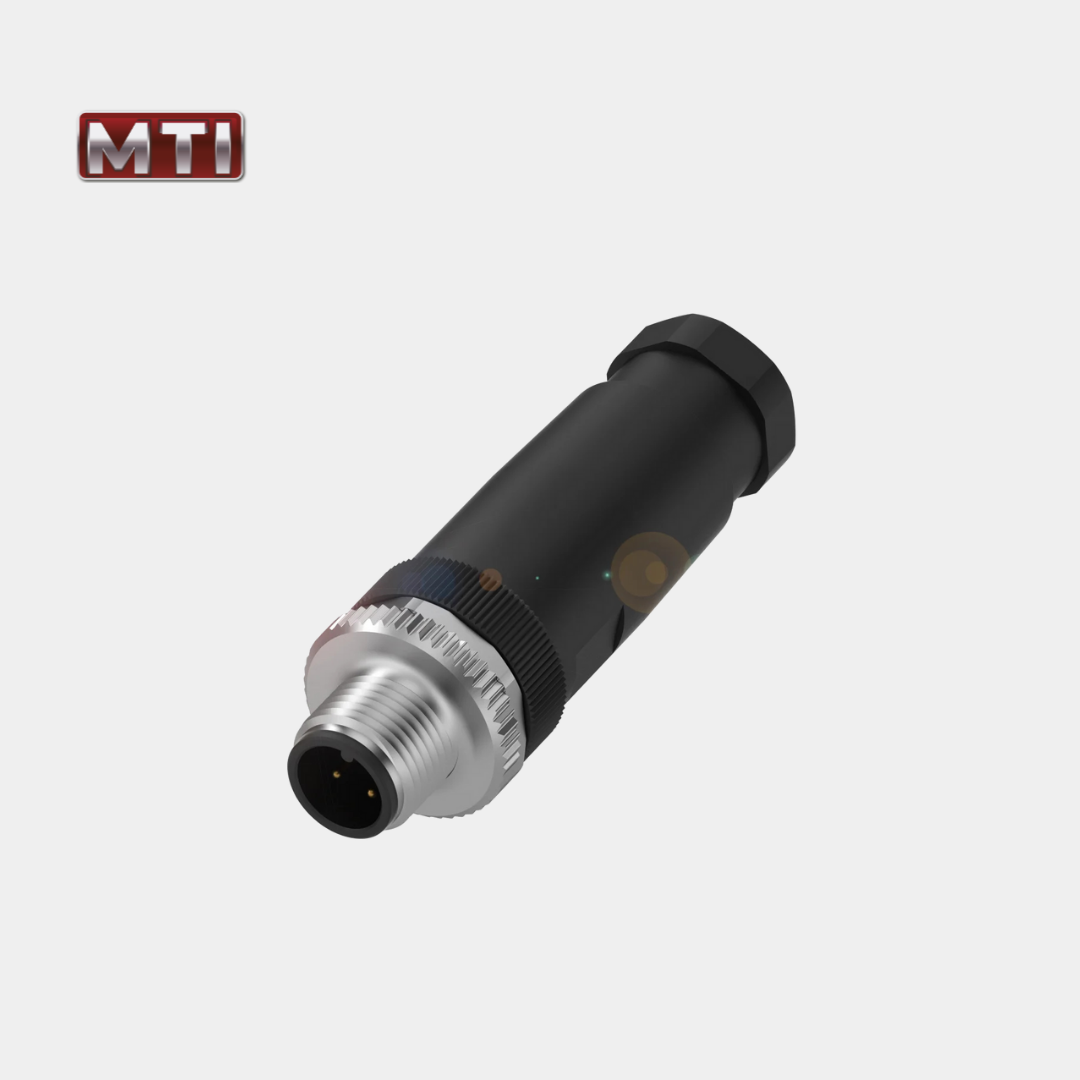

BCC06M4
Please do not hesitate to contact us to obtain More Information.
- Free Warehouse Pickup Available
- Safe Shipping & Delivery
- Secure Payment
Brand – Balluff
Price
$14.43
Type : BCC06M4
- Lead Time : 3-5 days
24 in stock (can be backordered)
Details

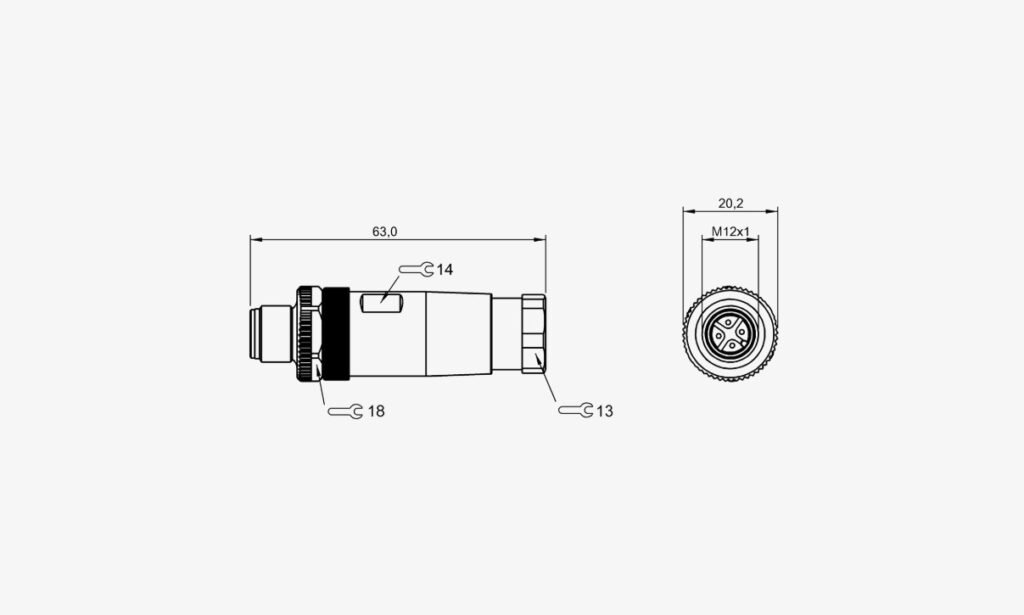

BCC M434-0000-2A-000-41X475-000
| Connection 1 | M12x1-Male, straight, 4-pin, A-coded |
| Number of connectable contacts | 4 |
| Connection cross-section | 0.14…0.75 mm² |
| Type of wire mounting | Screw terminals |
| Cable diameter D | 4…6 mm |
| Operating voltage Ub | 250 VDC / 250 VAC |
| Rated current (40 °C) | 4.0 A |
| IP rating | IP67 |
| Ambient temperature | -40…85 °C |
| Approval/Conformity | CE cURus WEEE |
Downloads
| Datasheet | Download |
Order Example
