BCC05MC
Please do not hesitate to contact us to obtain More Information.
- Free Warehouse Pickup Available
- Safe Shipping & Delivery
- Secure Payment
Brand – Balluff
Price
$37.23
Type : BCC05MC
- Lead Time : 3-5 days
7 in stock (can be backordered)
Details

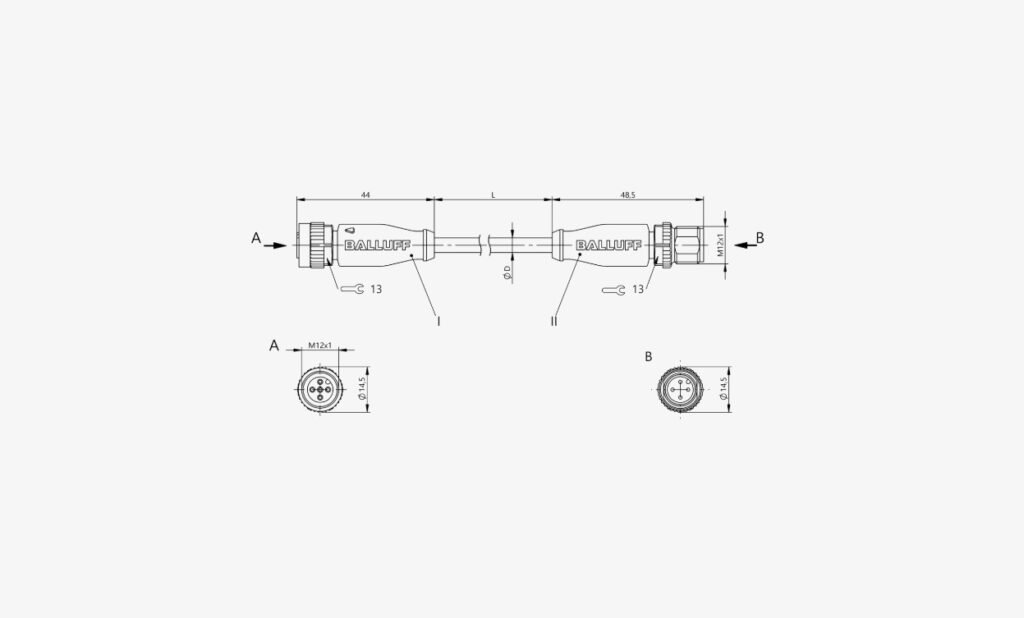

BCC M415-M414-3A-304-VX44T2-020
| Connection 1 | M12x1-Female, straight, 5-pin, A-coded |
| Connection 2 | M12x1-Male, straight, 4-pin, A-coded |
| Power indicator | |
| Function indicator | |
| Function indicator (Pin 4) | |
| Cable | PVC yellow, 2 m |
| Number of conductors | 4 |
| Cable temperature, fixed routing | -40…105 °C |
| Cable temperature, flexible routing | -5…105 °C |
| Operating voltage Ub | 250 VDC / 250 VAC |
| Rated current (40 °C) | 4.0 A |
| IP rating | IP67, IP68, IP69K/IP67, IP68, IP69K |
| Approval/Conformity | CE cULus WEEE |
Downloads
| Datasheet | Download |
Order Example
