BAE0003 (Discontinued)
Please do not hesitate to contact us to obtain More Information.
- Free Warehouse Pickup Available
- Safe Shipping & Delivery
- Secure Payment
Brand – Balluff
Price
$440.38
Type : BAE0003
- Lead Time : 3-5 days
1 in stock (can be backordered)
Details

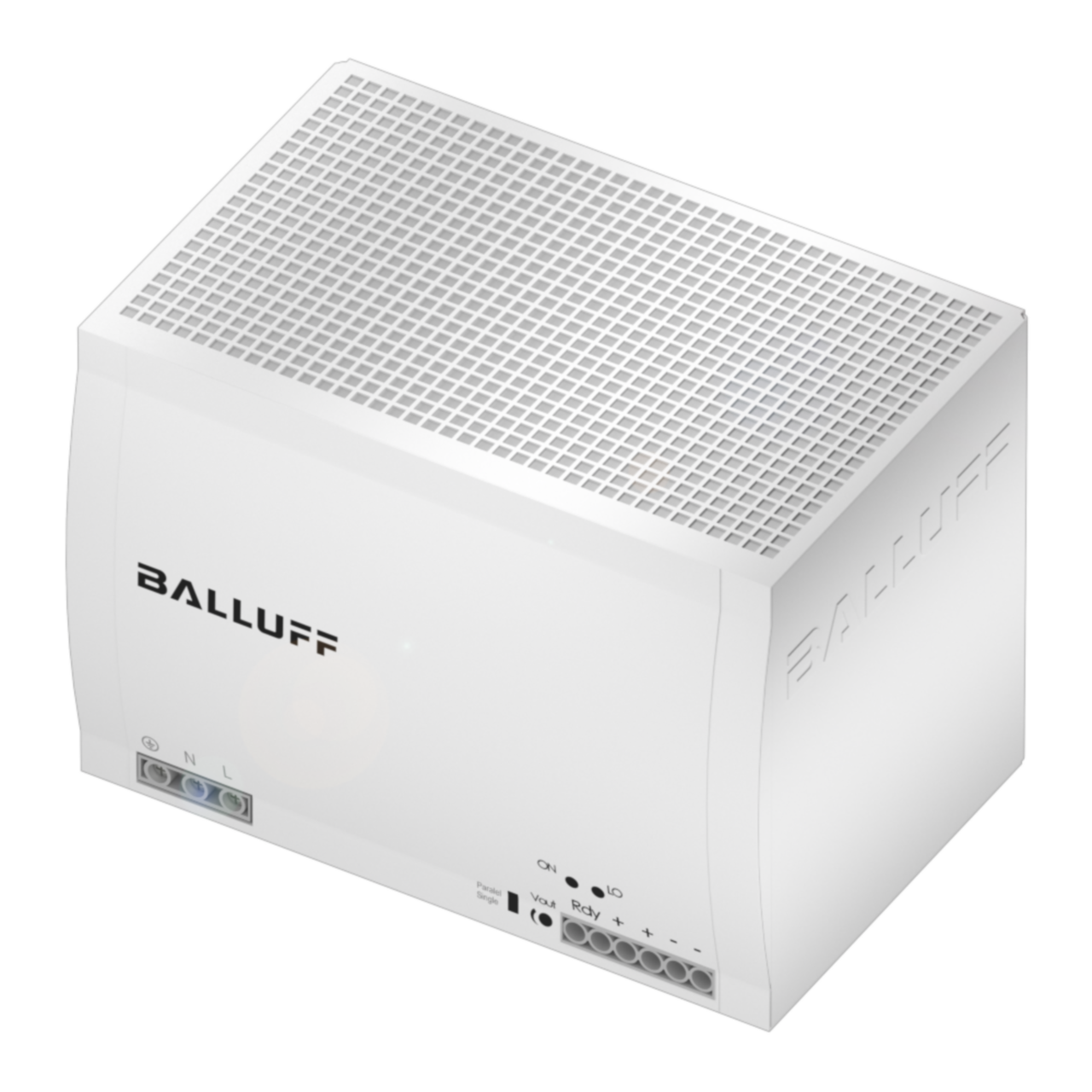

BAE PS-XA-1W-24-200-005

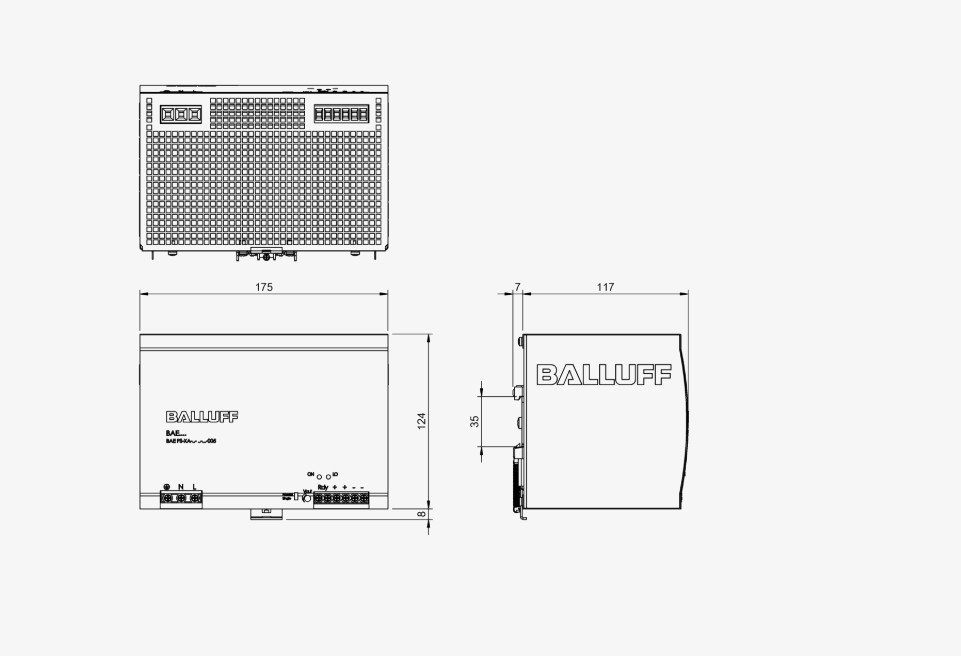

| Dimension | 175.5 x 124.5 x 116.6 mm |
| Version | DIN rail |
| Mounting part | DIN rail mounting |
| Housing material | Metal |
| Connection | Terminal, 0.25…4 mm² |
| Input voltage | 100…240 VAC, Single phase |
| Rated output voltage DC | 24 V |
| Rated output current | 20 A |
| IP rating | IP20 |
| Approval/Conformity | CE CCC cULus WEEE |
| Ambient temperature | -40…70 °C |
Downloads
| Datasheet | Download |
Order Example
